A Perspective on the GARIS VONA BOX Drawer System

1. Introduction & The Shift in Global Cabinet Architecture

Over  my  past  ten  years  working  in  the  trenches  at  GARIS,  I  have  witnessed  a  profound  architectural transformation in the global premium cabinetry market. There was a time when a standard double-wall drawer box with 16mm or 18mm thick steel side panels was considered the pinnacle of luxury hardware. However, driven by Italian minimalism and a structural surge in the high-end custom home market (often termed “Gao- Ding” in regional markets), the engineering benchmarks have changed completely. Today’s high-end clients demand zero visual clutter, absolute linear alignment, and extreme material integration. The luxury is no longer just about the hardware being functional; it is about the hardware disappearing into the design while exhibiting flawless kinematic performance.

In this competitive climate, furniture manufacturers face critical challenges: maintaining narrow gap tolerances of 1.5mm across oversized drawer fronts, preventing drawer sag under heavy loads, and delivering a multi- sensory  premium  experience.  This  technical  whitepaper  delves  deep  into  how  the  GARIS  VONA  BOX Drawer System solves these  issues  through  cutting-edge  platform  architecture,  ultra-slim  manufacturing tolerances, and innovative damping technologies.

2. Corporate Profile & Technological Infrastructure

To  understand the  reliability of the VONA  BOX  platform, one  must  examine the  production  infrastructure backing  it.  In  my  decade  at the firm,  our  manufacturing footprint  has scaled  dramatically to  meet global standards.

Corporate Overview

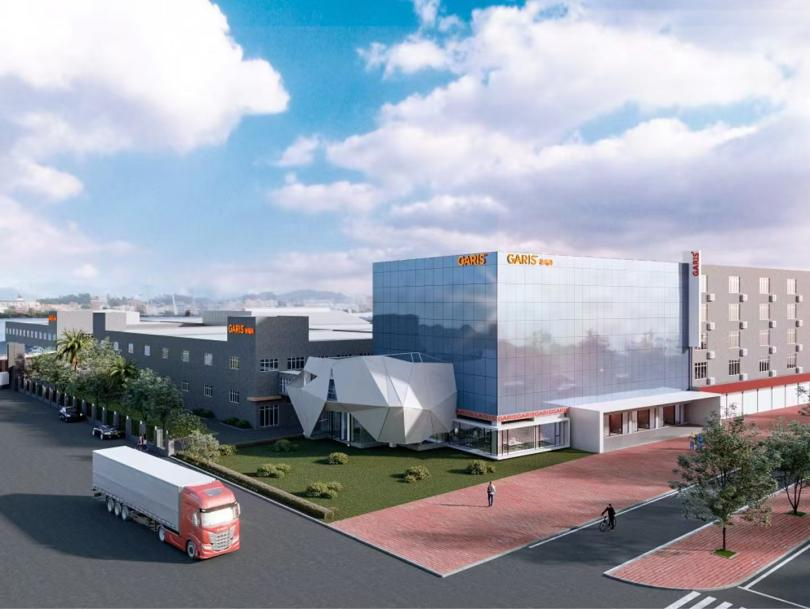

Guangdong GARIS Precision Hardware Technology Co., Ltd., founded in 2001, is a leading national high-tech manufacturer specializing in functional home hardware solutions. Operating from three advanced production bases spanning 200,000 square meters with over 1,500 employees, GARIS features an elite team of 150+ R&D experts and holds more than 100 patents. Certified by ISO9001, ISO14001, TUV, and SGS, its products are exported to 72 countries. GARIS delivers end-to-end, high- standard smart manufacturing, providing custom home and cabinetry brands worldwide with seamless, innovative, and premium hardware systems designed for creative living spaces.

2.1 Core Flagship Product Portfolios

GARIS does not merely manufacture individual items; we engineer comprehensive movement ecosystems. Our flagship product lines comprise:

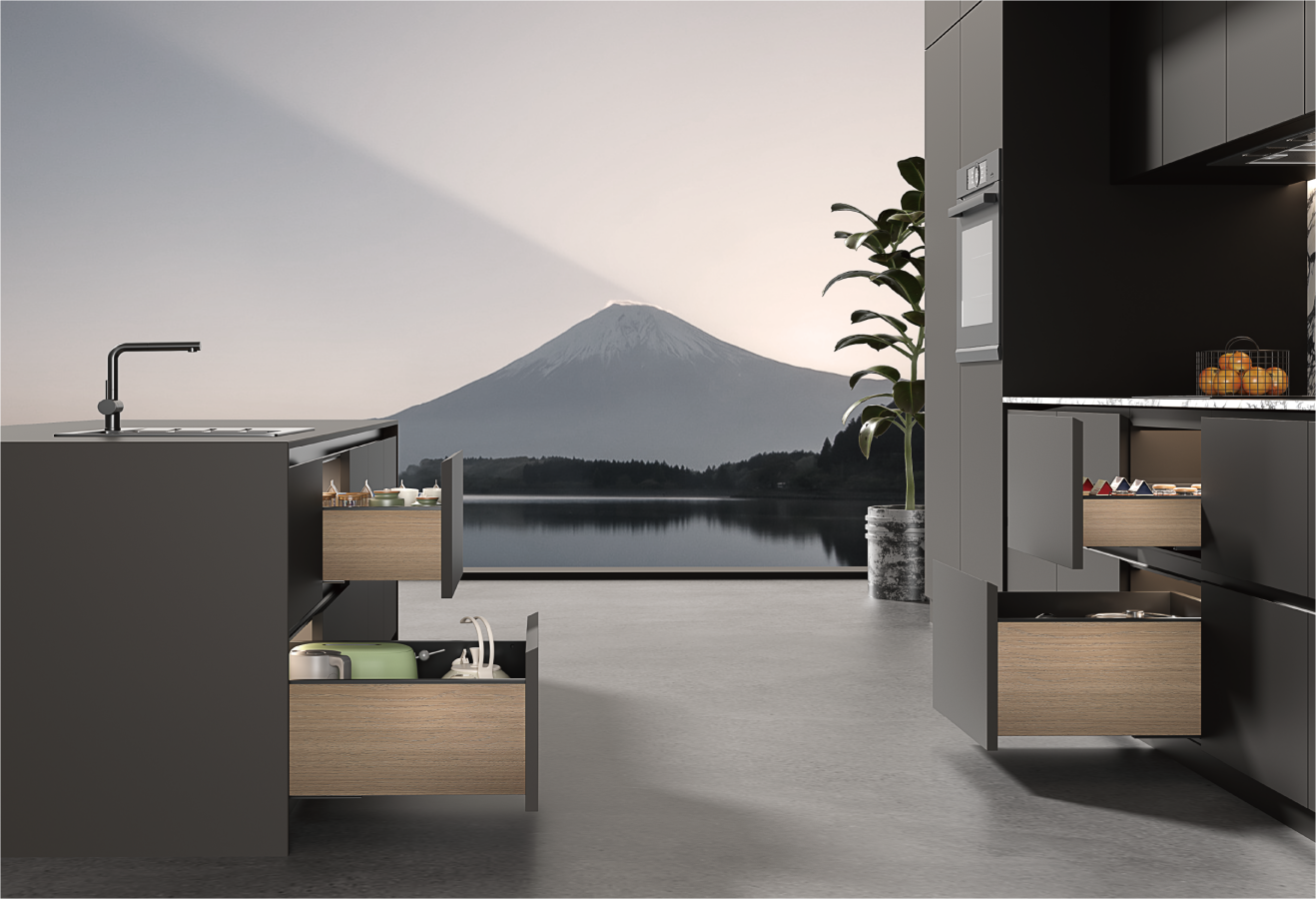

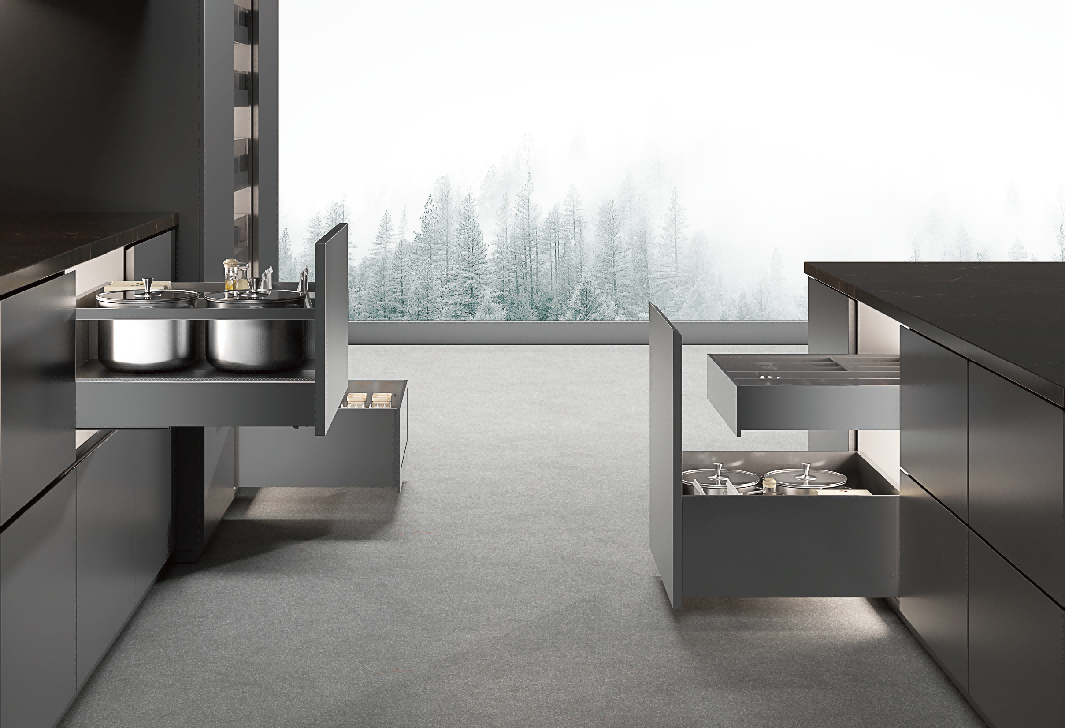

• VONA BOX Drawer System: Our premier slim-line slide and double-wall platform designed for minimalist aesthetics and deep material customization

• MINI-BOX & UNI-BOX Drawer Systems: Ultra-slim 13mm double-wall metal drawers tailored for modern kitchen space maximization.

• IN-BOX Variable Drawer System: A modular setup with variable capacity expansion methods, ideal for high-utility internal organization.

• Concealed  Undermount  Slide  Series:  Full-extension,  synchronized  runners  optimized  for  traditional high-end wooden drawers.

• Premium Hinge Systems: Heavy-duty hinges equipped with micro-dampers and 3D adjustment for flawless door closing.

• Kitchen  Divider  &  Pull-Out  Storage  Solutions   (Rofi  System):   Intelligent  organization  tools  that transform loose drawer spaces into high-density storage grids.

3. The Technical Specification Matrix of the VONA BOX Platform

The core strength of the VONA BOX platform lies in its product scalability. Instead of forcing cabinet makers to reinvent their cabinet box cutting dimensions for every model, GARIS utilizes an advanced shared platform architecture.

3.1 Model Classifications and Design Architecture

The VONA  BOX  range  is  designated  under several  highly  precise  model  numbers,  each serving  distinct structural and aesthetic purposes:

• NS9 Series (Ultra-Slim  Line): The flagship of  minimalism, featuring a  breakthrough  9mm side  panel profile that reclaims up to 30% of lost internal volume compared to legacy double-wall boxes.

• N9 Series (Pragmatic Luxury): A balanced platform designed for high-efficiency assembly, serving as the standard slim-box configuration.

• N9+ Series (Glass & Hybrid Architecture): Designed with integrated glass inserts or PETG panels to add transparency and visual texture to high-end wardrobe fit-outs.

• N13 & N13+ Series: The structural benchmark utilizing a 13mm wall thickness, engineered to support deeper drawer cavities and heavier face panels.

3.2 Dimension, Loading, and Length Specifications

Specification Vector	NS9 Series	N9 / N9+ Series	N13 / N13+ Series
Available Heights (mm)	H94, H135, H182, H217	H76, H94, H135, H182, H217	H72, H90, H131, H178, H213
Nominal Length Range (NL)	270mm – 550mm	270mm – 550mm	270mm – 550mm
Dynamic Load Capacities	40kg / 70kg Option	40kg	40kg / 70kg Option
Side WallThickness	9mm (Ultra-thin)	9mm Standard Slim	13mm Structural
MaterialEngineering	Galvanized sheet, Cold-rolled steel, PET	High-strength steel, Powder coating	Structural alloy steel, PETG laminated

4. Core Engineering Innovations and Kinetic Mastery

As an expert who has spent a decade dealing with hardware failures in the field, I can assert that the beauty of a drawer is meaningless if it wobbles when pulled or slams when closed. The engineering behind the VONA BOX system focuses directly on solving real-world physical stress points.

4.1 The 9mm Micro-Slim Barrier (NS9 Series)

Traditional drawer side walls are thick and hollow, consuming valuable space. The NS9 breaks this barrier by compressing the double-wall  profile  down to  9mm. Achieving a  9mm  profile without sacrificing structural rigidity requires intense stamping precision. GARIS utilizes multi-stage progressive die presses that harden the cold-rolled steel during the forming process. This ensures that even at a 9mm thickness, the drawer side panel does not bend under lateral forces or sudden impact when the drawer is violently closed.

4.2 Advanced Slide Runner Dynamics: SCT and TOS Technology

The motion of the VONA BOX is driven by our newly developed three-section full-extension synchronized slide runner system. We have isolated three key operational modes to cater to handle-less or traditional cabinet configurations:

1. SCT  (Stepless  Soft-closing  Technology):  Utilizing  a  micro-fluid  damper  combined  with  dual-rail synchronization, the slide offers zero resistance during initial pull, and a slow, gentle deceleration during closing. The anti-shake rollers keep the runner path true, preventing any side-to-side wobble.

2. TOS (Touch-Open Mechanism): A mechanical rebound device that triggers immediate, smooth drawer ejection with a light touch anywhere on the front drawer face panel. It is completely handle-free, preserving the minimalist exterior.

3. SCT + TOS (The Ultimate Combination): A hybrid system that enables a light push-to-open action, yet retains full soft-closing dampening upon return. In the past, these two forces competed; GARIS engineers solved this via a  proprietary  mechanical  clutch that  disengages the  spring tension  during the closing stroke.

4.3 Multi-Dimensional Precision Adjustment

When high-end designers demand 1.5 ext{mm} reveals (the gap between cabinet doors/drawers), even a 0.5 ext{mm}  installation  error  becomes  an  eyesore.  The  VONA  BOX  features  a  built-in  3D  micro-adjustme

mechanism concealed beneath a sleek decorative cover plate. Installers can tune the drawer face panel tool- free or via a simple screwdriver:

• Vertical Height Adjustment: \pm 3 ext{mm} to correct floor settlement or carcass sagging.

• Horizontal Left-Right Adjustment: \pm 1.5 ext{mm} to achieve perfectly parallel vertical sightlines.

• Tilt  Front-Back  Adjustment: Crucial for  handle-less  TOS  drawers, allowing fine-tuning of the trigger depth gap.
